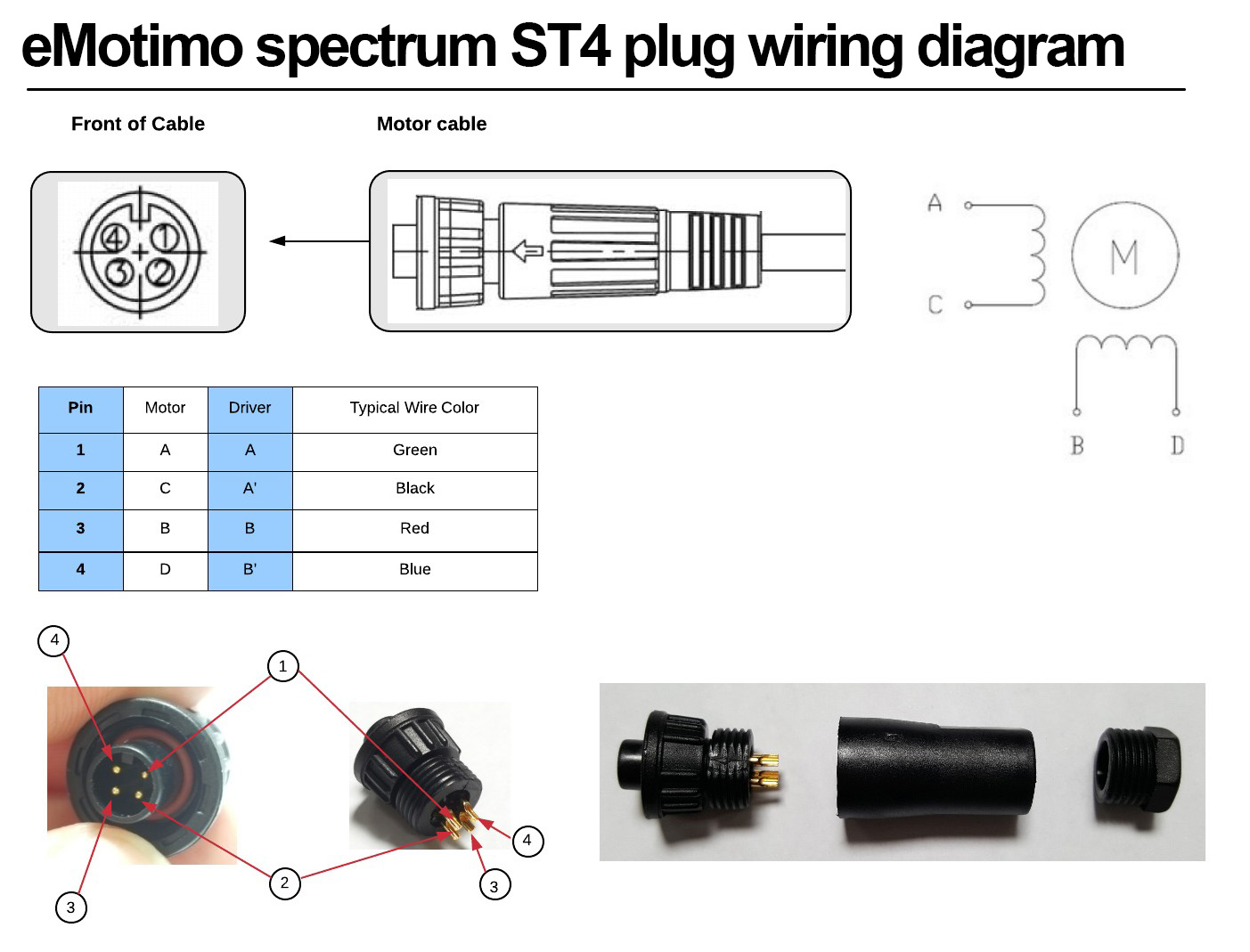

spectrum ST4 motor plug wiring diagram

Logan Steinfeld

April 27, 2022 16:34
Updated

Spectrum Plug Wiring Diagram.jpg
200 KB Download

Was this article helpful?

1 out of 2 found this helpful
