Getting Started - Installing the eMotimo Motor to your Passport or RailDolly

You got your new RigWheels Passport/RailDolly beltless integration!  You are almost there.

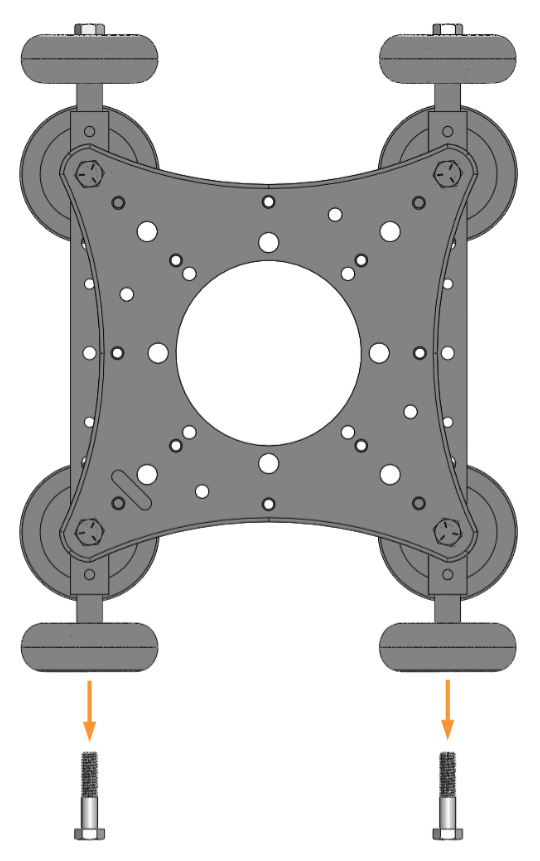

1. Use a 1/2" hex wrench to remove 2x 5/16" bolts on one side of your Passport/RailDolly

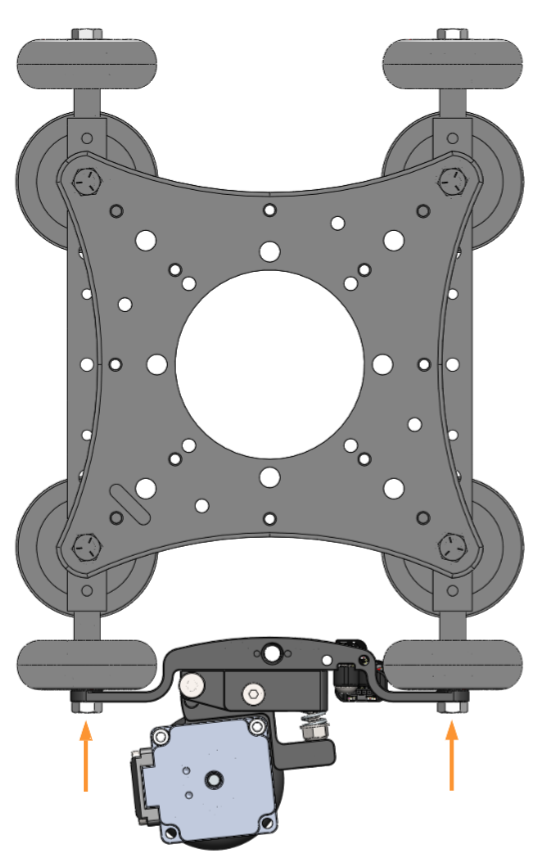

2. Place the Passport/RailDolly integration on the outside of the wheels aligning the holes to the threads of the dolly and reinstall the 5/16" bolts

3. Place the dolly onto the PortRail. The motor integration comes pre-disengaged to allow for easy install of the dolly onto the track

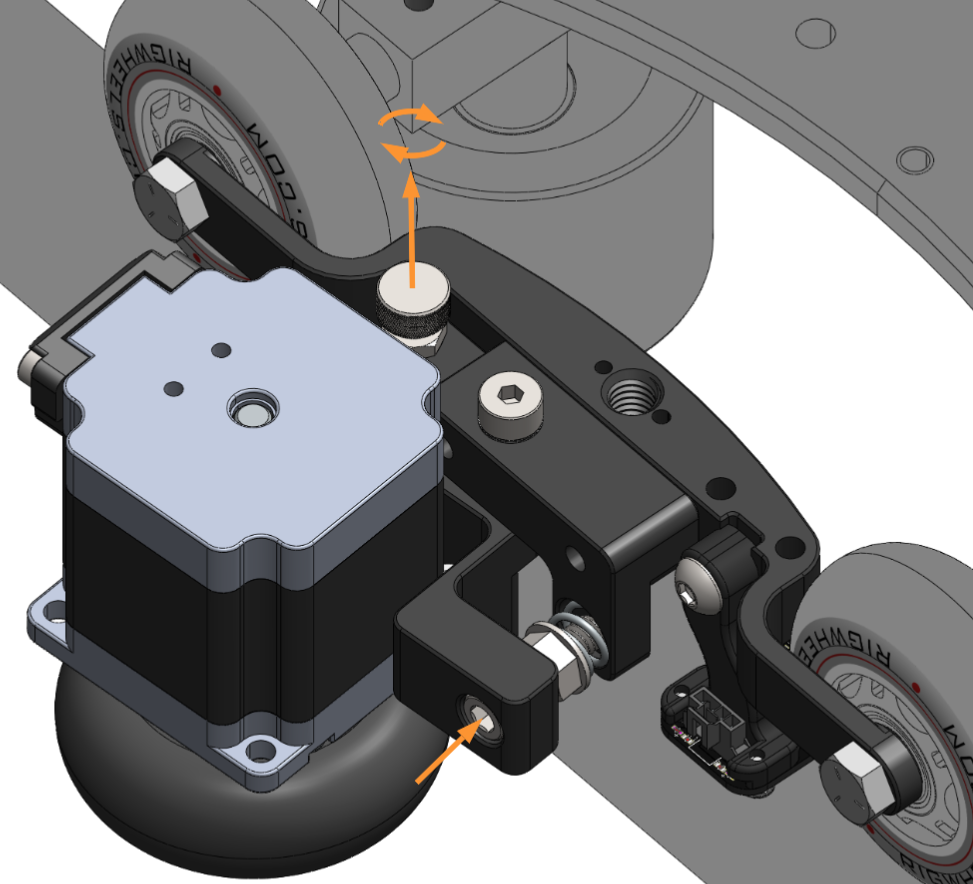

4. Engage the motor by compressing the suspension spring, pulling the locking pin up, and twisting it 90°. You can disengage the motor by twisting the locking pin another 90° and compress the suspension spring

5. Plug the motor into your controller (M1 port for Conductor, M3 port for Spectrum)
