Mounting Spectrum Studio

Tripod

Mount your Spectrum Studio to any tripod with an arca quick release OR mount the included riser and arca quick release to a 3/8"-16 stud and mount the Spectrum Studio to the clamp

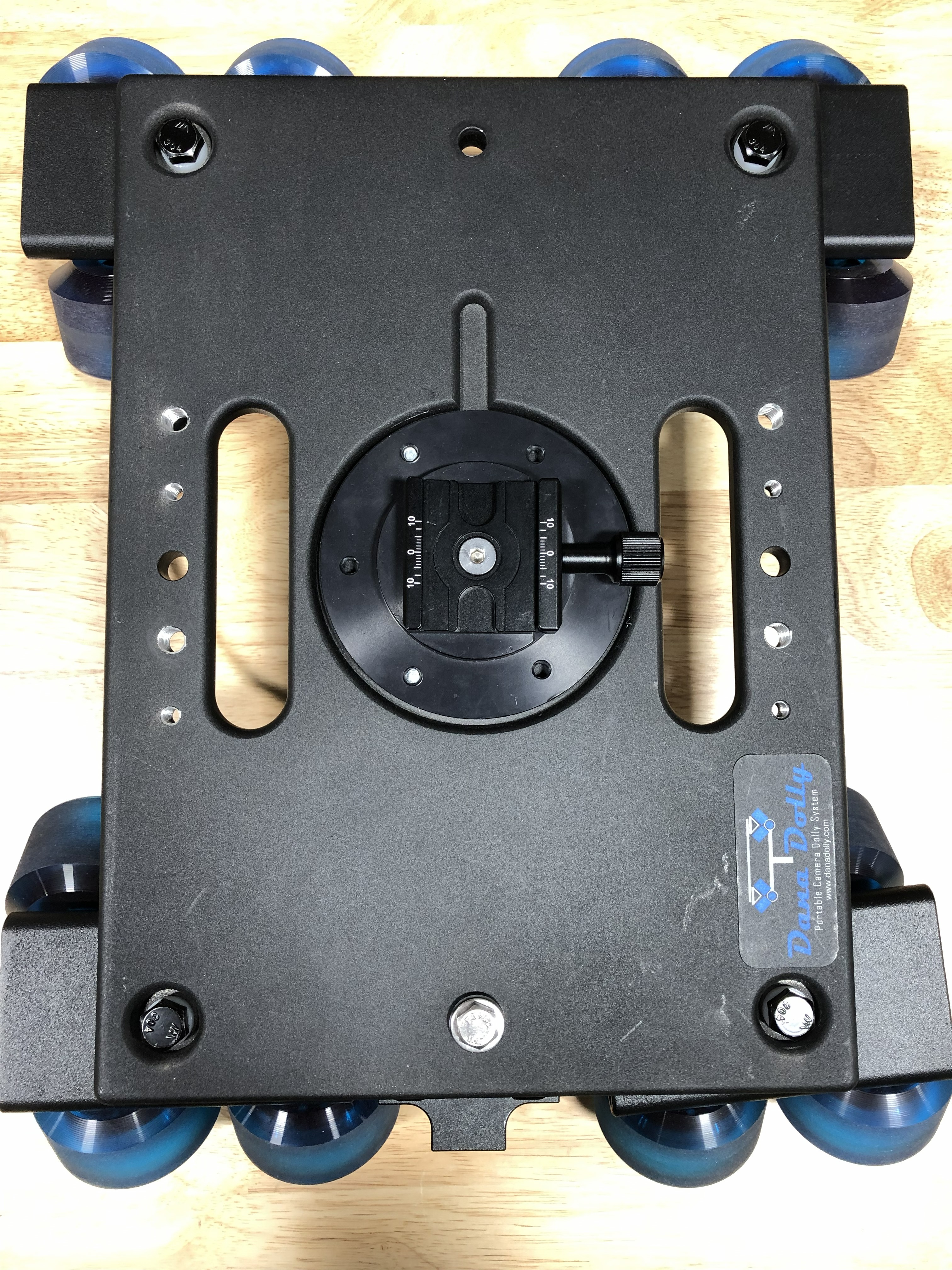

Dana Dolly

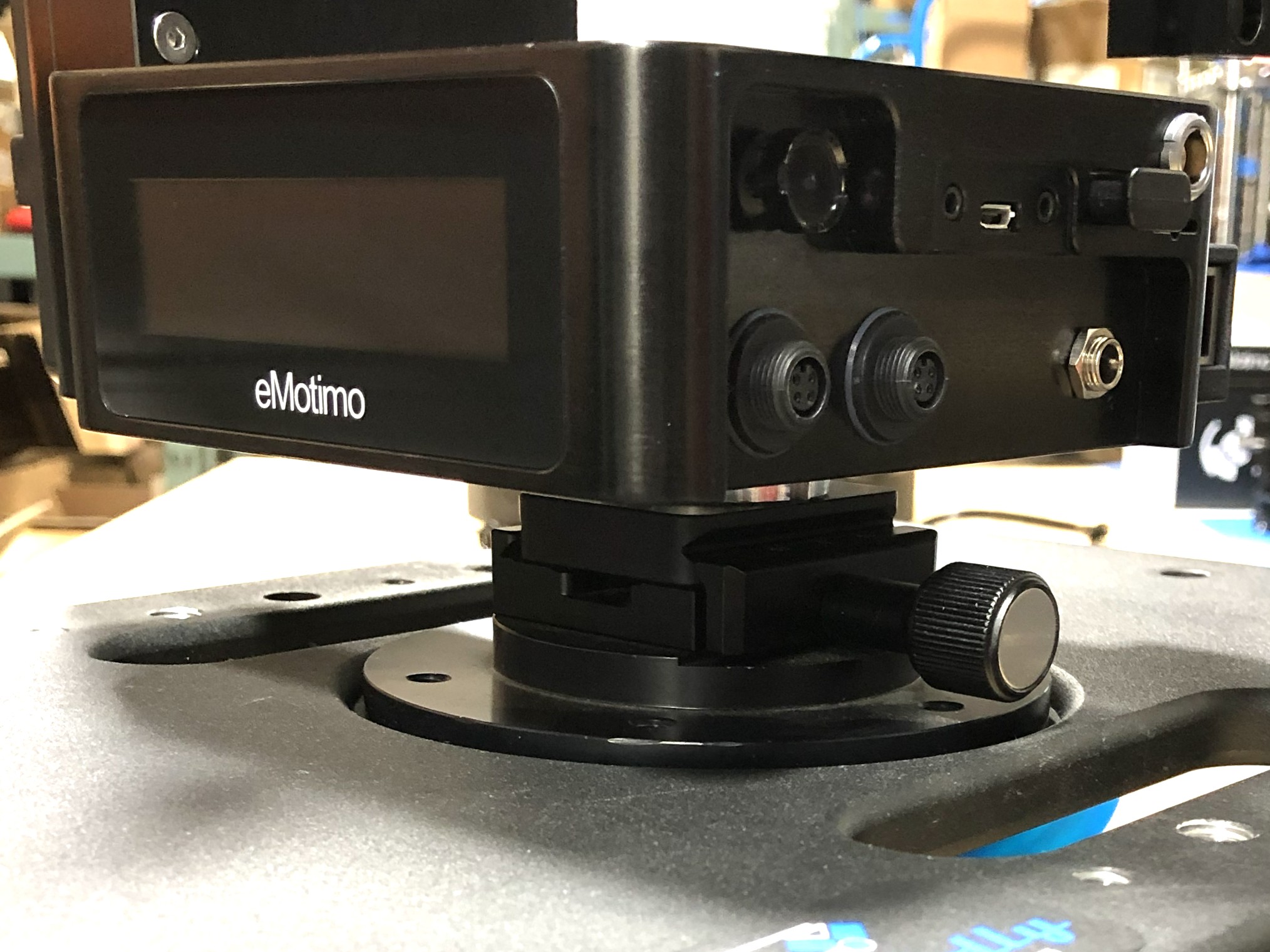

Option 1 Riser + Clamp and Ball Adapter (Recommended):

Mount a ball adapter (we recommend the Manfrotto 500BALLSH) to the Dana Dolly carriage and then thread the Riser and Clamp (included with your Spectrum Studio) to the top. This will allow you to make minor leveling adjustments.

Option 2 Mitchell Adapter with Arca Quick Release:

Mount the Mitchell Adapter with Arca Quick Release to the Dana Dolly.

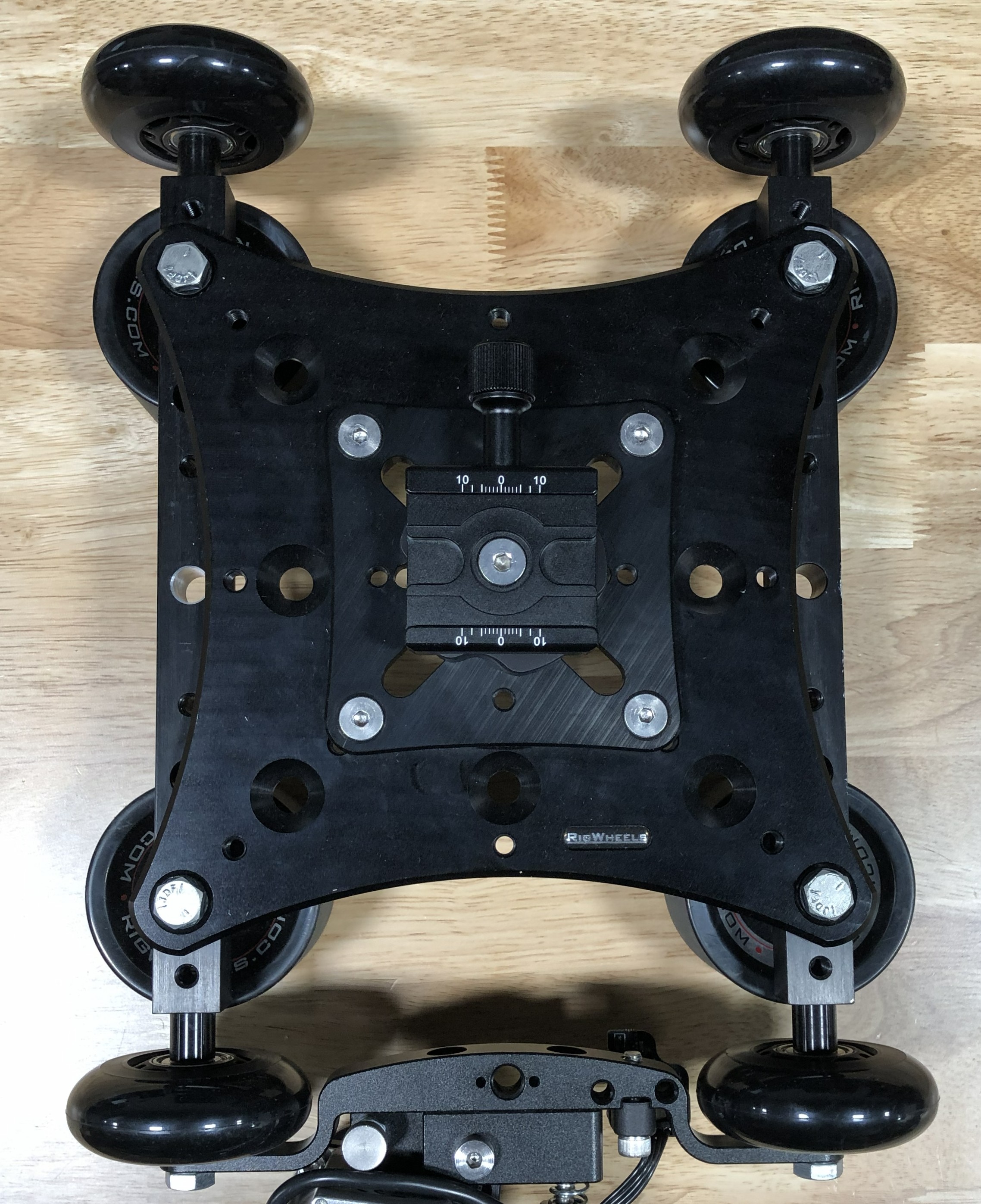

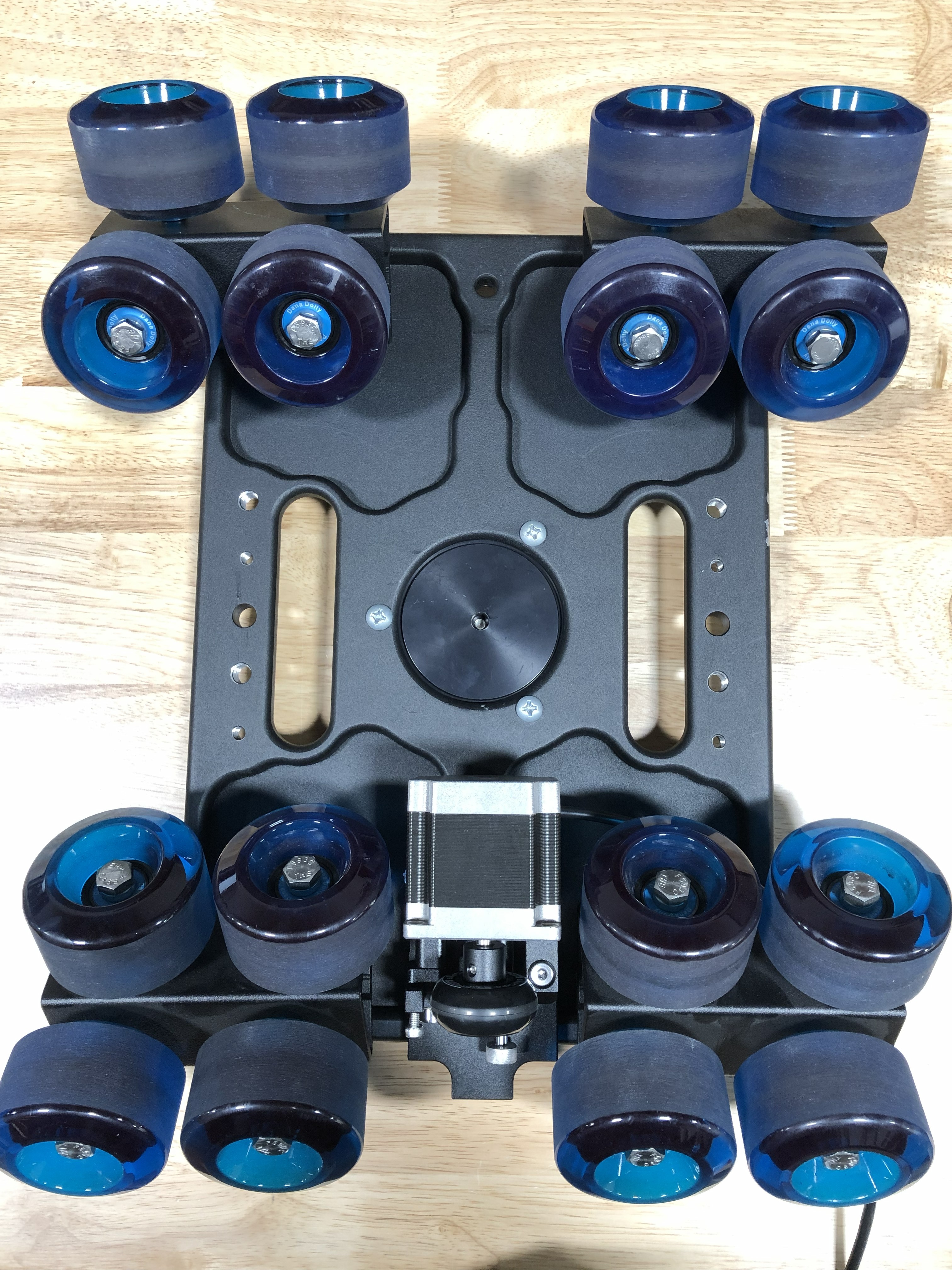

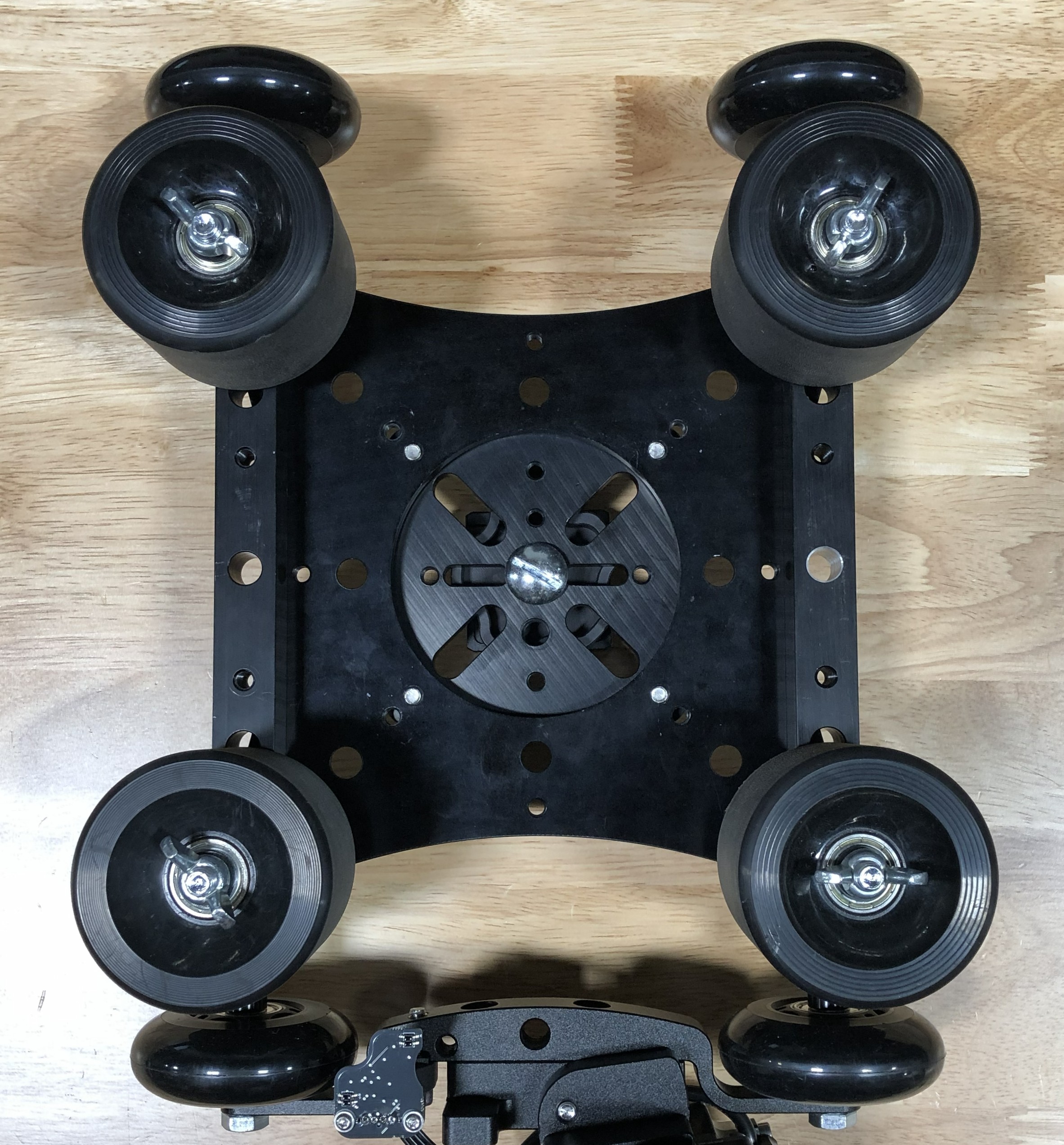

RigWheels Passport/RailDolly

Option 1 Riser + Clamp and Ball Adapter (Recommended):

Mount a ball adapter (we recommend the Manfrotto 500BALLSH) to the Passport/RailDolly carriage and then thread the Riser and Clamp (included with your Spectrum Studio) to the top. This will allow you to make minor leveling adjustments.

Option 2 Riser + Clamp on Flat Plate:

Mount the Flat plate adapter to the RailDolly carriage. Bolt the Riser and Clamp to the carriage with a 3/8"-16 bolt.
