Camera Mounting to Spectrum Studio

1. Attach included 100mm Arca Plate to your camera
2. Mount the camera to the included L-Bracket
3. Mount the L-Bracket to the Spectrum

ⓘ To achieve the smoothest motion, adjust your camera position so its center of gravity is aligned with the pan and tilt axes (both vertically and horizontally) on Spectrum Studio.

For longer lenses, use an extended Arca plate (such as a 150mm plate) to shift the camera backward or forward until the system is properly balanced over the pan axis.

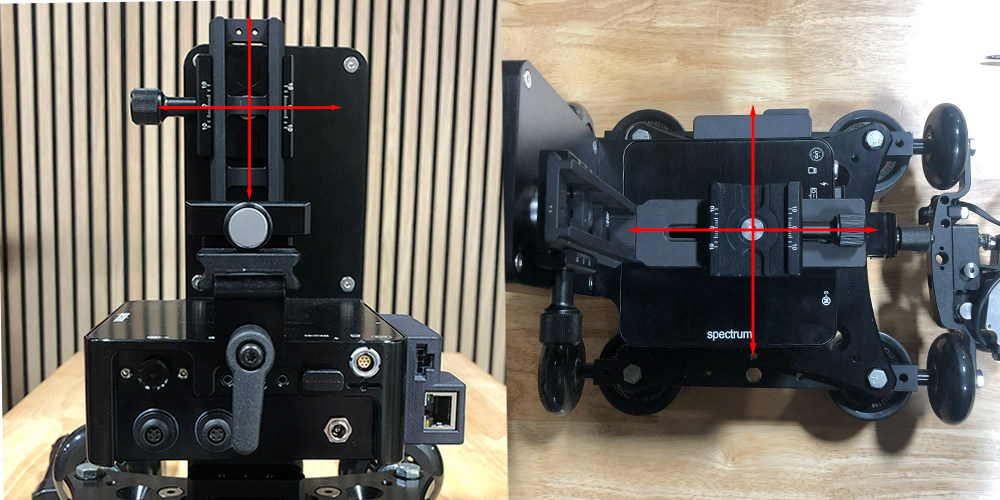

Proper Camera Balance:
